Cadillac XT6 Light Up Emblem
This LED emblem replaces the factory front crest on the Cadillac XT6 with a backlit badge that illuminates whenever your daytime running lights are on. The housing is cut to the original XT6 grille aperture at 190mm × 70mm, so it seats in the factory mounting position without trimming or adhesive.
LED and Finish Options

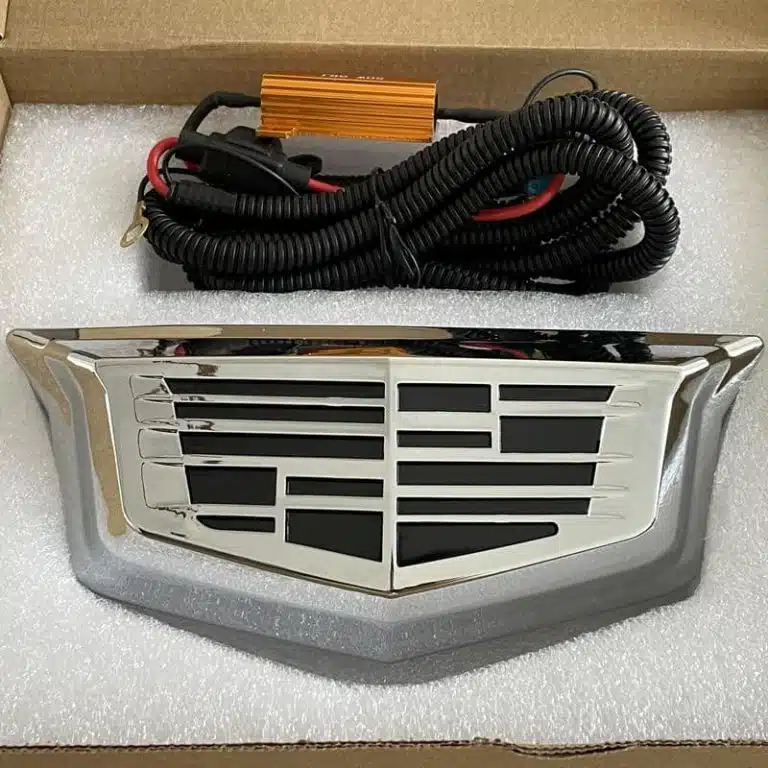

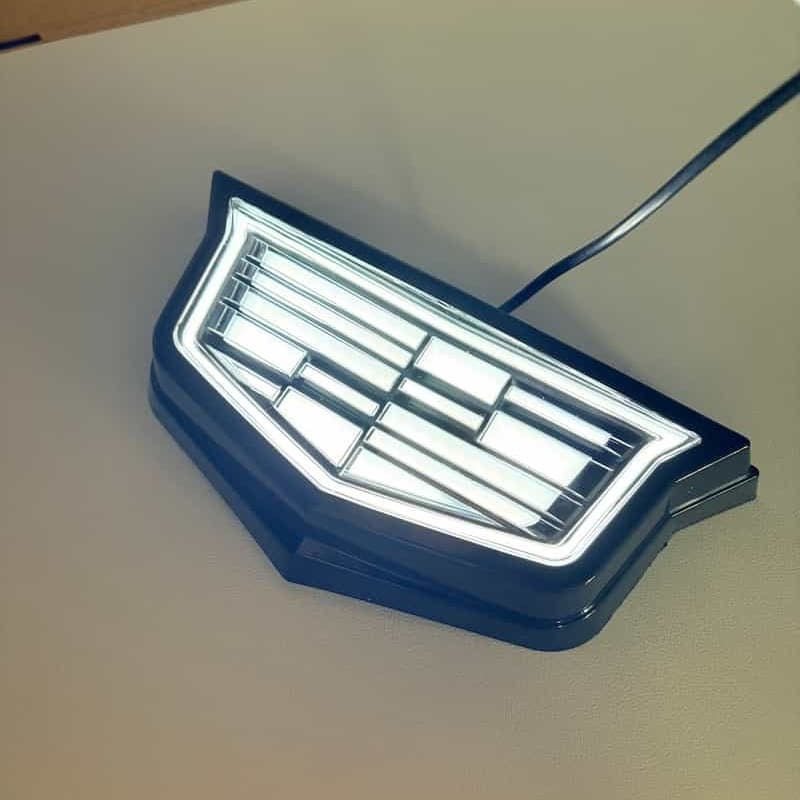

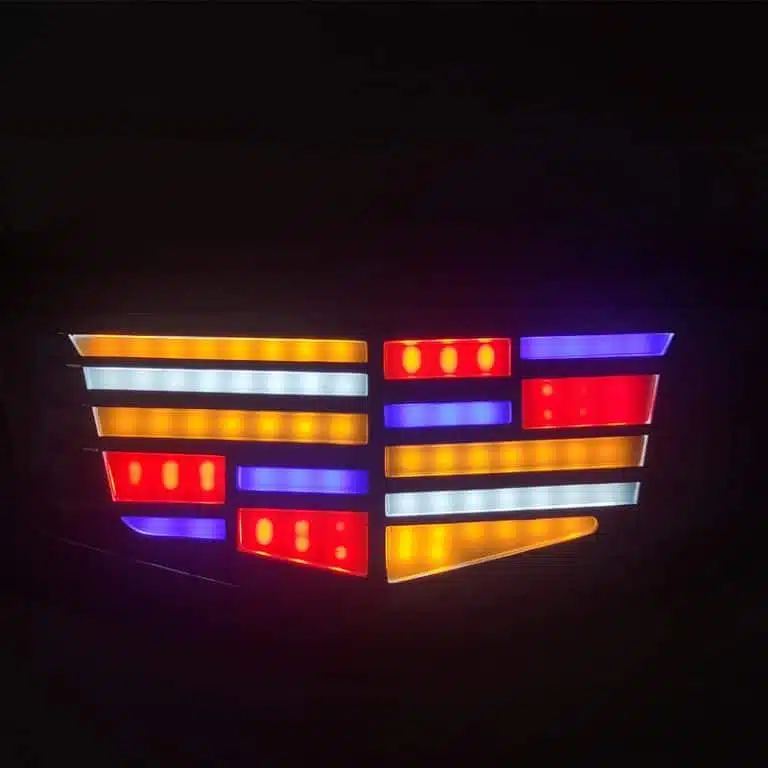

First-generation XT6 fitments are available with either a clean white LED or a colour-shift option that cycles a fixed palette. Second-generation fitments are white only. Both generations offer the crest in gloss black or silver — black keeps the badge dark until the LED fires, which gives the strongest night-time contrast, while silver reads closest to the factory finish during the day.
Fitment Warning
This emblem does not fit XT6 models with the Wheat Ear emblem grille. Check your existing badge before ordering. If you are unsure which grille your car has, send us a photo through Contact Us and we will confirm.
Installation

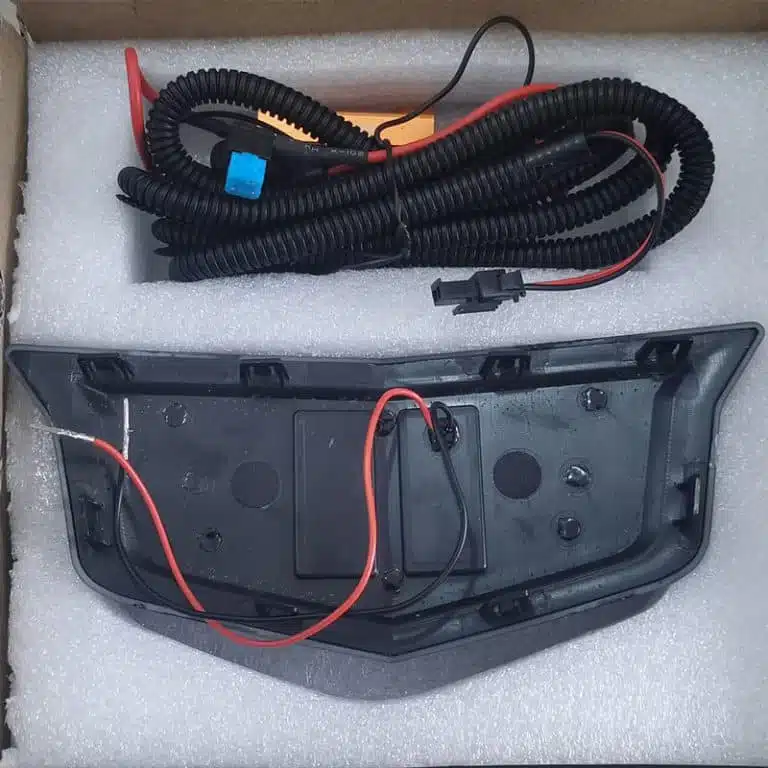

The emblem ships with a 1500mm harness and connects to your existing 12V daytime running light or parking light circuit. No cutting of factory wiring, no ECU coding, and no dealer visit. Full instructions covering both the harness method and the fuse-box method are in our installation guide.

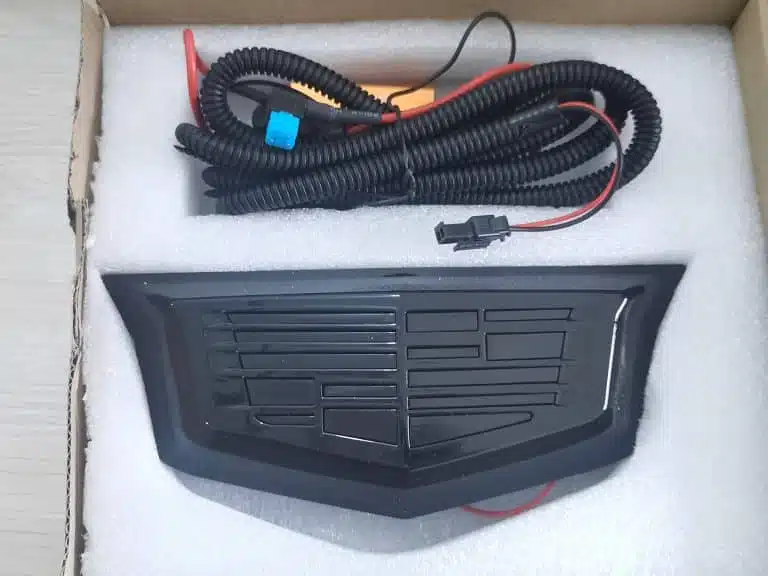

Package:
1* LED Cadillac XT6 Light Up Emblem Light
Frequently Asked Questions — Cadillac XT6 Light Up Emblem
Does this fit every Cadillac XT6? +
It fits both 1st and 2nd generation XT6 models with the standard grille, but it is not compatible with XT6 variants fitted with the Wheat Ear emblem. Check your existing badge shape before ordering, or send us a photo of your grille through Contact Us and we will confirm fitment.
What colour options are available? +
First generation XT6 fitments offer white or colour-shift LED. Second generation fitments are white LED only. Both generations are available with the crest in gloss black or silver. Select your combination from the options above before adding to cart.
How is the emblem powered? +
The emblem connects to your vehicle’s 12V circuit, normally wired to the daytime running lights or parking lights, so it illuminates automatically whenever those lights are on. The included harness is 1500mm, which is long enough to reach the fuse box on the XT6 without an extension.
Is installation difficult? +
Installation is plug-and-play for most owners: remove the factory emblem, route the harness behind the grille, and connect to the power source. No cutting of factory wiring and no coding required. Allow 20 to 30 minutes. If you are not comfortable working behind the grille, any auto electrician can fit it in under an hour.
Will it void my Cadillac warranty? +
In most cases no. The emblem is a non-invasive modification that leaves all factory wiring intact and requires no ECU changes, and the installation is fully reversible. Retain your original badge and proof of purchase. Warranty terms vary by jurisdiction, so check with your dealer if you have specific concerns.
Is it waterproof? +
Yes. The housing is sealed to IP67, which covers heavy rain, snow, road spray and standard car washing including automatic washes. Avoid aiming a pressure washer lance directly at the harness grommet from close range.
Is there a rear version for the XT6? +
This listing covers the front grille emblem only. A universal rear tailgate emblem is available separately in our illuminated Cadillac emblem range. Many owners fit both so the crest reads consistently from either end of the car.
Is this a genuine GM part? +
No. This is an aftermarket illuminated emblem. Caddyaccessories is an independent retailer and is not affiliated with, endorsed by, or sponsored by General Motors or Cadillac. The XT6 model name is used solely to indicate vehicle fitment.
Still have a question? Contact our support team — we reply within 24 hours.
